OCD-CAM
CNC Series
600 mm
Distance between centers
Ø420 mm
Swivel over table
Ø400 mm
Max. external grinding dia.

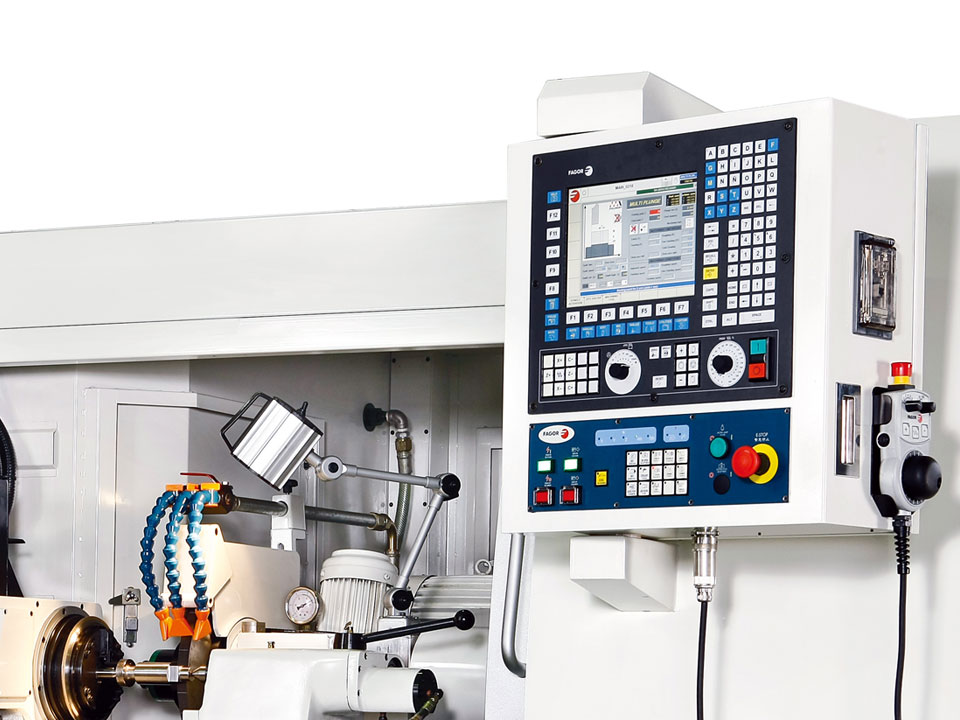

For various eccentric circle or non-round shape workpieces grinding purpose, PALMARY develop CNC Cylindrical Grinder Cam Type for easily transfer from workpiece drawing to grinding program. The workhead could offer precise angle control due to the C axis has accurate angle encoder.
Main Structure of the CNC cylindrical grinder, when in combination with angle control of spindle by C axis (built-in spindle motor), is capable of grinding various special shaped workpiece.
The working spindle carried with precision angle decoder, high resolution of angle control.
The infeed axis is driven by linear motor with linear guideway & close loop linear scale, it could avoid the backlash in order to reach high machining precision. Also, it could prevent the reaction force causing by linear motor under the large acceleration and deceleration motion, it could stabilize the grinding process.
Retaining various functions of CNC cylindrical grinder, and applicable to angle and speed control.
| Model | OCD-4260CAM | ||||
|---|---|---|---|---|---|
| Capacity | |||||
| Swivel over table | Ø420 mm | ||||
| Distance between centers | 600 mm | ||||
| Max. external grinding diameter | Ø400 mm | ||||
| Max. load of centers | 150 kgs | ||||
| Grinding wheel | |||||
| O.D. x width x I.D. | Ø355 x 50 x Ø127 mm | ||||
| Linear velocity | 45 M/s | ||||
| Grinding wheel head | |||||
| Auto. rapid advance | 4 m/min | ||||
| Max. stroke | 257 mm | ||||
| Min. setting unit | 0.001 (0.0001) mm | ||||
| Table | |||||
| Auto. rapid advance | 4 m/min | ||||
| Max. stroke | 826 mm | ||||
| Min. input increment | 0.001 (0.0001) mm | ||||
| Swivel angle | 0° ~ 10° | ||||
| Work spindle head | |||||
| Swivel angle | -30° ~ +90° | ||||
| Center taper | M.T. No. 4 | ||||
| Spindle speed (variable) | 10~500 r.p.m. | ||||
| Max. load of spindle (tool holder included) | 35 kgs (max. length: 150 mm) | ||||
| Tailstock | |||||
| Taper center | M.T. No. 4 | ||||
| Stroke | 25 mm | ||||
| Fine adjustment range | ±0.03 mm | ||||
| Motor | |||||
| Wheel spindle | 3.7 kW (4P) | ||||
| Workhead spindle | 5.2 kW (AC Servo Motor) | ||||
| Wheelhead feed | 3.6 kW (AC Servo Motor) | ||||
| Table feed | 3.6 kW (AC Servo Motor) | ||||
| Hydro-static hydraulic pump | 0.75 kW (6P) | ||||
| Wheel spindle lubricant pump | 0.18 kW (2P) | ||||
| Coolant pump | 0.18 kW (4P) | ||||
| Ballscrew lubrication | Auto lubricator (LUBE) | ||||
| Tank | |||||
| Wheel spindle lubrication tank | 12 L | ||||
| Lubrication tank | 60 L | ||||
| Ballscrew lubrication tank | 0.7 L | ||||
| Coolant tank | 100 L | ||||
| Machine weight | |||||
| New weight | 5300 kgs | ||||
The mentioned specifications & dimensions are subject to change without notice.
