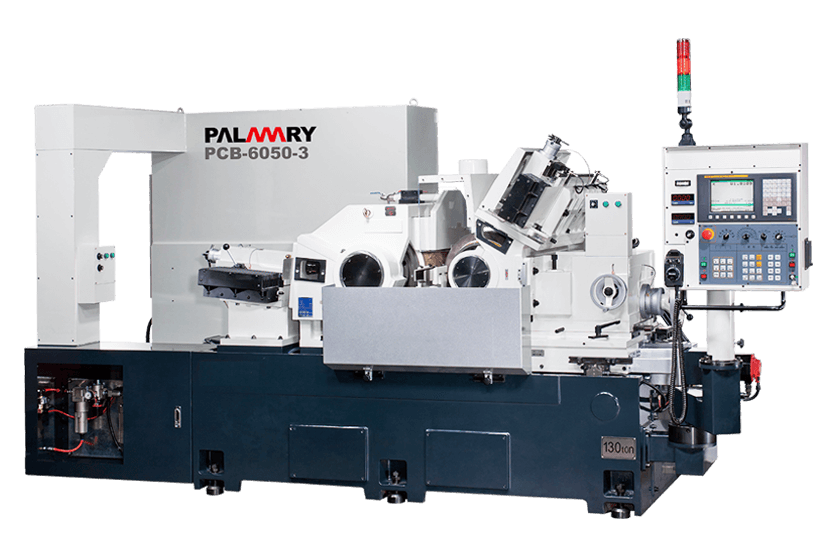

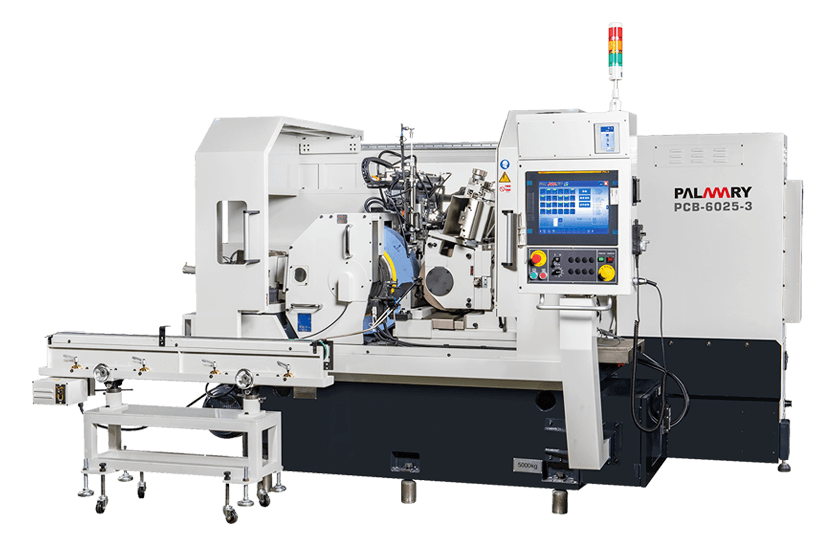

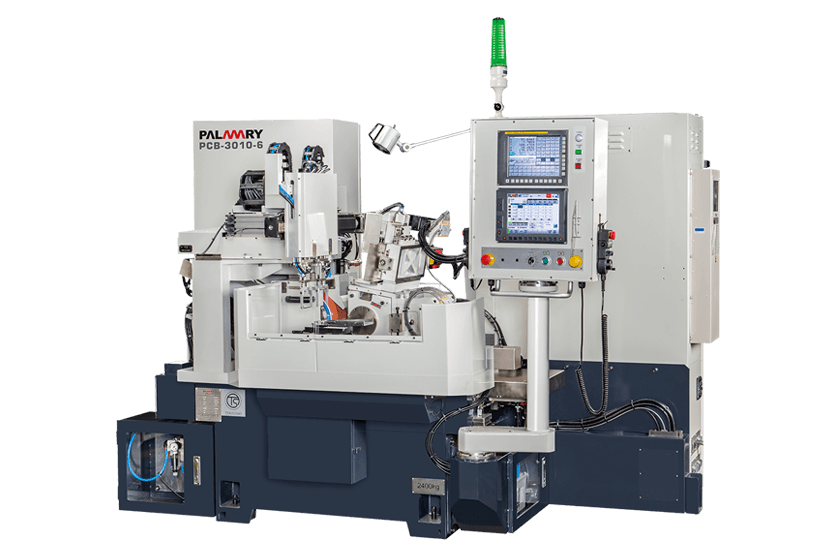

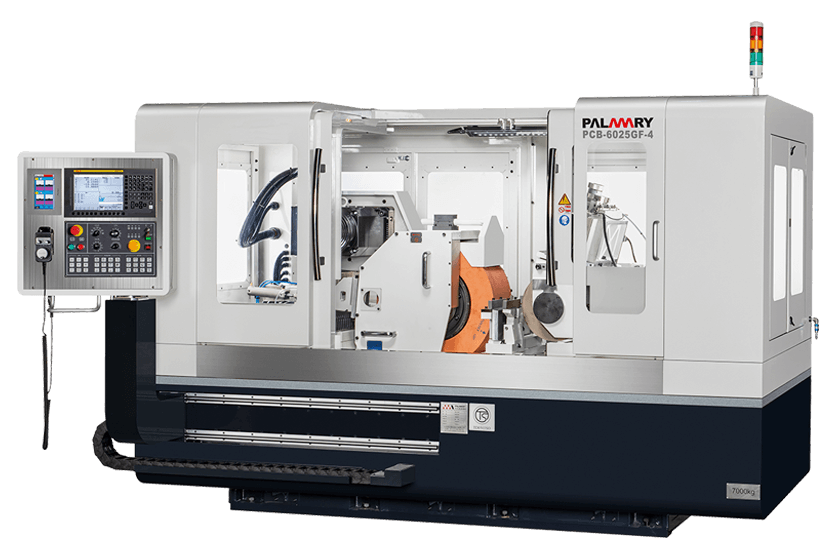

PCB
CNC Series
Dia. Ø1~80
Standard grinding range (mm)
Ø455 x 205/255 x Ø228.6
Grinding wheel size (mm)
Ø260 x 205/255 x Ø101.6
Regulating wheel size (mm)
The CNC Series Bearing Type Spindle Centerless Grinders offer high rigidity and precision with multi-axis CNC control, driven by servo motors for convenience and accurate positioning. The use of high-accuracy NN bearings in the grinding wheel spindle ensures both precision and rigidity.
Compared to the FCL series, this Centerless Grinding Machine achieves a significant 26% energy saving, reducing production costs and environmental impact. CNC technology allows flexible and efficient operation, making it suitable for various industries like machining, mold manufacturing, and automotive, providing high-quality processing solutions.
Palmary's CNC Series Bearing Type Spindle Centerless Grinder combines CNC technology and Centerless Grinding Machines, delivering high performance, accuracy, and energy efficiency for an excellent processing experience.
High accuacry
High grinding accuracy and rigidity design for max. 6 axes CNC control bearing spindle type grinder for wide range application.
High stability
The best configuration for machine bed and structural support ribs make the grinding accuracies more stability and reach higher accuracy level.
Bearing spindle type
The machine has the grinding wheel spindle single bearing holding type equipped with super precision cylindrical roller bearings make centerless grinding easier and more accurate than ever before.
Automation
For different auto application, the high speed loading & unloading attachment is optional to equop.
| Model | PCB-4520 | PCB-4525 | |
|---|---|---|---|
| Grinding Wheel | |||
| Standard grinding range (dia.) | Ø1~Ø80 mm | ||
| Grinding wheel size (O.D. x width x I.D.) | Ø455 x 205 x Ø228.6 mm | Ø455 x 255 x Ø228.6 mm | |
| Linear velocity | 45 M/s | ||
| Dressing device | Single-point dressing device / (opt.)Diamond roller dressing device | ||
| Lubrication | Oil mist type | ||
| Regulating Wheel | |||
| Regulating wheel size (O.D. x width x I.D.) | Ø260 x 205 x Ø101.6 mm | Ø260 x 255 x Ø101.6 mm | |
| Regulating wheel speed | 10~300 r.p.m. (variable speed) | ||
| Regulating wheel tilt angle | ±5° | ||
| Regulating wheel swivel angle | ±0.5° | ||
| Regulating wheel dressing device swivel angle | ±5° | ||
| Dressing device OFFSET | 0～15 mm | ||
| Slider | |||
| Lower and upper slider | Square slider, Ball screw + reducer | ||
| Motor | |||
| Grinding wheel motor | 15HP x 4P (11 kW) / OPT. 20HP x 4P (15 kW) | ||
| Regulating wheel motor | 2 kW servo motor | ||
| Coolant motor | 0.186 (wheel cooling) / 0.093 (dressing cooling) | ||
| Lubrication | |||
| G.W. lubrication | Oil mist type | ||
| R.W. lubrication | Oil grease type | ||
| Lubrication | Auto lubricator (LUBE) | ||
| Controller | |||
| Brand | FANUC | ||
| Tank | |||
| Coolant tank | 170 L | ||
| Grinding wheel spindle lubrication system | 1.0 L | ||
| Table slide lubrication | 4.0 L | ||
| Weight | |||
| New weight | 3800 kgs | ||
The mentioned specifications & dimensions are subject to change without notice.
ACCESSORIES
- FANUC CNC controller x 1
- Regulating wheel and flange x 1
- Grinding wheel and flange x 1
- Thrufeed work rest x 1
- Thrufeed carbide blade x 1
- Infeed work rest x 1
- Infeed carbide blade x 1
- Diamond tools (4 pcs/set) x 1
- Electric system x 1
- Lubrication system for spindle x 1
- Coolant tank with pump x 1
- Work lamp x 1
- Tools (Leveling pad) and tool box x 1
ACCESSORIES
- Diamond roller device
- Diamond roller
- Wheel balancing stand and arbor
- JIB crane for grinding wheel change
- Linear scale
- Auto in-process gauge
- Auto loading and unloading system
- Magnetic coolant separator
- Paper filter
- Hydrocyclone coolant separator
- Oil mist collector
- Water cooler
- Fully enclosed splash guard
