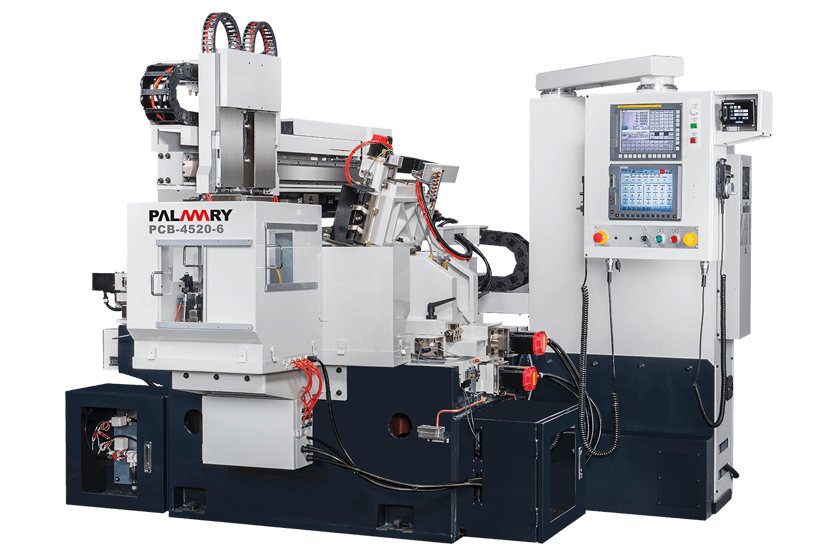

PCB
CNC Series
Dia. Ø1~150
Standard grinding range (mm)
Ø610 x 305/405 x Ø304.8
Grinding wheel size (mm)
Ø355 x 305/405 x Ø203.2
Regulating wheel size (mm)
Super rigid structure, stable without deformation. Double support grinding wheel spindle design features high speed operation to boost grinding performance. Computer numerical control from 1 ~ 6 axes satisfy requests for customized specification. Fitted with wider wheel, suitable for efficient mass production.
Bearing type spindle
The double support bearing type spindles offer even grinding force on the contact surface. During grinding process, the stress is even on both ends of spindle to avoid taper shaped workpieces.
Feeding slide design
The one "V" & one flat feeding slide design reinforces the feeding stability. The entire feeding slide is hand scrapped to reduce friction and to increase accuracy of jog movement.
R.W. transmission efficiency
Adjustable R.W. worm shaft eliminates the gap, increases transmission efficiency and lifetime.
Oil mist lubrication
The oil mist lubrication device is arranged for grinding wheel spindle lubrication, also help to clean and constant temperature control.
| Model | PCB-6030 | PCB-6040 | |
|---|---|---|---|
| Grinding Wheel | |||
| Standard grinding range (dia.) | Ø1~Ø150 mm | ||
| Grinding wheel size (O.D. x width x I.D.) | Ø610 x 305 x Ø304.8 mm | Ø610 x 405 x Ø304.8 mm | |
| Linear velocity | 45 M/s | ||
| Dressing device | Single-point dressing device / (opt.) Diamond roller dressing device | ||
| Regulating Wheel | |||
| Regulating wheel size (O.D. x width x I.D.) | Ø355 x 305 x Ø203.2 mm | Ø355 x 405 x Ø203.2 mm | |
| Regulating wheel speed | 10~200 r.p.m. (variable speed) | ||
| Regulating wheel tilt angle | +5°~-1° | ||
| Regulating wheel swivel angle | ±2° | ||
| Regulating wheel dressing device swivel angle | ±5° | ||
| Dressing device OFFSET | 0～20 mm | ||
| Slider | |||
| G.W. device Slide | |||
| R.W. device Slide | |||
| Motor | |||
| Grinding wheel motor | 30HP x 4P (22 kW) | 40HP x 4P (30 kW) | |
| Regulating wheel motor | 5 kW servo motor | ||
| Coolant motor | 1HP x 2P (0.75 kW) | ||
| Lubrication | |||
| G.W. lubrication | Oil mist type | Auto. lubricator | |
| R.W. lubrication | Oil grease type | Auto. lubricator | |
| Slide lubrication | Auto lubricator (LUBE) | ||
| Controller | |||
| Brand | FANUC | ||
| Tank | |||
| Coolant tank | 140 L | ||
| Grinding wheel spindle lubrication system | 1.0 L | ||
| Table slide lubrication | 4 L | ||
| Weight | |||
| New weight | 7000 kgs | ||
The mentioned specifications & dimensions are subject to change without notice.
ACCESSORIES
- FANUC CNC controller x 1
- Grinding wheel x 1
- Regulating wheel x 1
- Grinding flange (one-piece formed with spindle) x 1
- Regulating flange (one-piece formed with spindle) x 1
- Vibration meter for manual G.W. balancing
- Thrufeed work rest with carbide blade x 1
- Infeed work rest with carbide blade x 1
- Diamond tools x 2
- Electric system x 1
- Lubrication system for spindle x 1
- Coolant system x 1
- Work lamp x 1
- Tools (Leveling pad) and tool box x 1
ACCESSORIES
- Diamond roller device
- Diamond roller
- Grinding wheel exchanger
- JIB crane for grinding wheel change
- Auto loading and unloading system
- Linear scale
- Magnetic coolant separator
- Paper filter
- Hydrocyclone coolant separator
- Oil mist collector
- Water cooler
