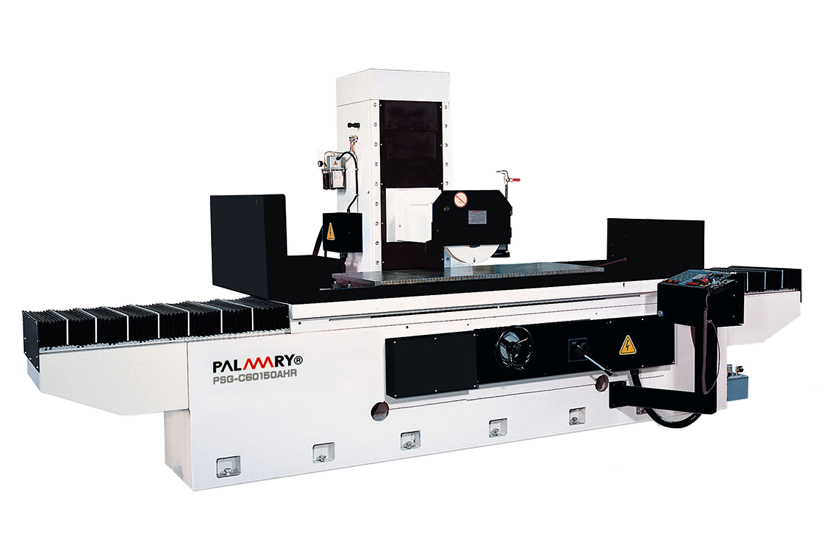

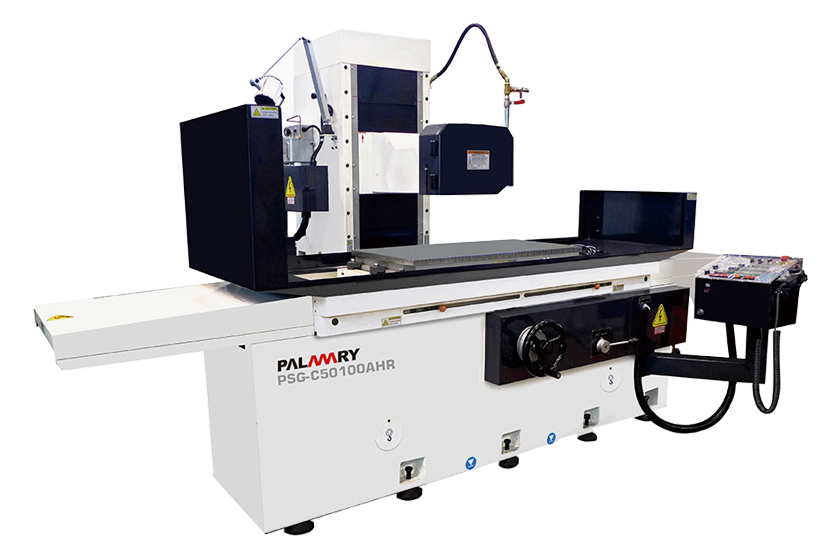

PSG-AHR
Hydraulic & NC Series
2000 mm
Working surface of table
600 mm
Max. distance center of spindle to table
405 x 50 x 127 mm
Wheel dimension
The quality-proven surface grinder designed with accuracy and productivity in mind. It uses strong cast iron and excellent structural design which eliminates internal stress and ensures rigidity and stability.
| Model | PSG-50200AHR | PSG-60200AHR | PSG-70200AHR |
|---|---|---|---|
| Working surface of table | 500 x 2000 mm (20" x 79") | 600 x 2000 mm (24" x 79") | 700 x 2000 mm (28" x 79") |
| Max. surface ground | 500 x 2000 mm (20" x 79") | 600 x 2000 mm (24" x 79") | 700 x 2000 mm (28" x 79") |
| Max. distance center of spindle to table | 600 mm (24") | ||
| Table speed | 5~25 m/min (200" ~ 1000"/min) | ||
| Table guideway | V & flat way | ||
| Auto. cross feed incerement (approx.) | 0.5~20 mm (0.02"~0.8") | ||
| Rapid power cross feed (approx.) | 1100 mm/min (44"/min) (60 Hz) 900 mm/min (36"/min) (50 Hz) |
||
| Cross feed on hand wheel (1 rev) Cross feed on hand wheel (1 gra) |
5 mm (0.2") 0.02 mm (0.001") |
||
| Rapid power head elevation (opt., approx.) | 300 mm/min (10"/min) | ||
| Vertical feed with M.P.G. (1 rev) Vertical feed with M.P.G. (1 gra) |
(x10) 1 mm (0.1") (x10) 0.01 mm (0.001") |
||
| Auto. down feed (opt.) | 0.001 mm ~ 0.999 mm/time (0.0001" ~ 0.0999"/ time) (opt.) |
||
| Wheel speed | 1750 r.p.m. (60 Hz) / 1450 r.p.m. (50 Hz) | ||
| Wheel dimension | 405 x 50 x 127 mm (16" x 2" x 5") | ||
| Spindle motor | 10 HP / 15 HP (opt.) | ||
| Hydrauilc pump motor | 5 HP | ||
| Auto. cross feed motor | 1/5 HP | ||
| Rapid head elevation motor | 1 kW AC servo motor | ||
| Coolant pump | 1/4 HP | ||
| Machine net weight | 8400 kgs (18480 Lbs) | 8700 kgs (19140 Lbs) | 9000 kgs (19800 Lbs) |
| Machine floor space | 6000 x 2300 mm | 6000 x 2450 mm | 6000 x 2550 mm |
The mentioned specifications & dimensions are subject to change without notice.
