psg-c60150ahr

Surface Grinder

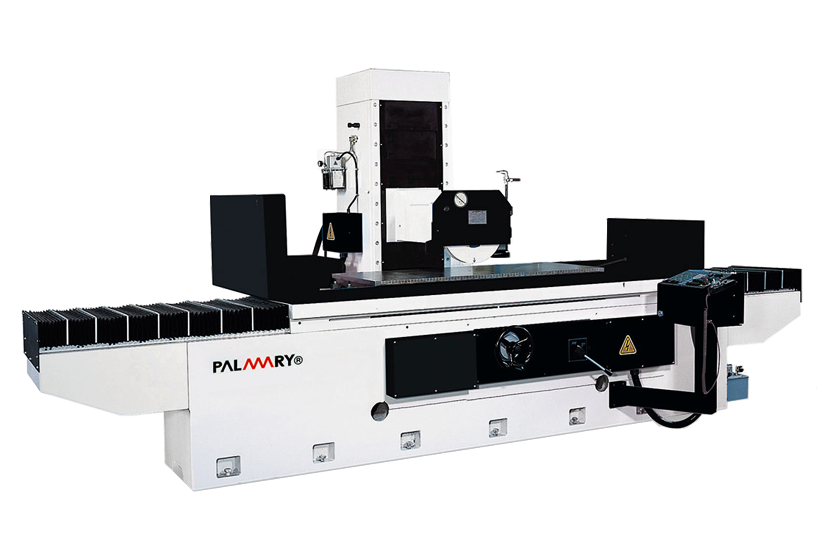

PSG-50150AHR / 60150AHR / 70150AHR

PSG-AHR

Hydraulic & NC Series

1500 mm

Working surface of table

600 mm

Max. distance center of spindle to table

405 x 50 x 127 mm

Wheel dimension

INTRODUCTION

The quality-proven surface grinder designed with accuracy and productivity in mind. It uses strong cast iron and excellent structural design which eliminates internal stress and ensures rigidity and stability.


SPECIFICATIONS
Model PSG-50150AHR PSG-60150AHR PSG-70150AHR
Working surface of table 500 x 1500 mm (20" x 60") 600 x 1500 mm (24" x 60") 700 x 1500 mm (28" x 60")
Max. surface ground 500 x 1500 mm (20" x 60") 600 x 1500 mm (24" x 60") 700 x 1500 mm (28" x 60")
Max. distance center of spindle to table 600 mm (24")
Table speed 5~25 m/min (200" ~ 1000"/min)
Table guideway V & flat way
Auto. cross feed incerement (approx.) 0.5~20 mm (0.02"~0.8")
Rapid power cross feed (approx.) 1100 mm/min (44"/min) (60 Hz)
900 mm/min (36"/min) (50 Hz)
Cross feed on hand wheel (1 rev)
Cross feed on hand wheel (1 gra)
5 mm (0.2")
0.02 mm (0.001")
Rapid power head elevation (opt., approx.) 300 mm/min (10"/min)
Vertical feed with M.P.G. (1 rev)
Vertical feed with M.P.G. (1 gra)
(x5) 0.5 mm (0.05")
(x5) 0.005 mm (0.0005")
Auto. down feed (opt.) 0.001 mm ~ 0.999 mm/time
(0.0001" ~ 0.0999"/ time) (opt.)
Wheel speed 1750 r.p.m. (60 Hz) / 1450 r.p.m. (50 Hz)
Wheel dimension 405 x 50 x 127 mm (16" x 2" x 5")
Spindle motor 10 HP / 15 HP (opt.)
Hydrauilc pump motor 5 HP
Auto. cross feed motor 1/5 HP
Rapid head elevation motor 1 kW AC servo motor
Coolant pump 1/4 HP
Machine net weight 7200 kgs (15840 Lbs) 7500 kgs (16500 Lbs) 7800 kgs (17160 Lbs)
Machine floor space 4800 x 2300 mm 4800 x 2450 mm 4800 x 2550 mm

The mentioned specifications & dimensions are subject to change without notice.

STANDARD
ACCESSORIES
  • Wheel flange x 1
  • Wheel balancing arbor x 1
  • Wheel balancing stand x 1
  • Coolant system (PSG-C50/60/70 only) x 1
  • Wheel dresser with diamond x 1
  • Tools (Leveling pad) and tool box x 1
  • Leveling screw and plates x 1
  • Flange extractor x 1
  • Grinding wheel x 1
OPTIONAL
ACCESSORIES
  • Coolant system
  • Dust suction system
  • Paper filter
  • Auto. down feed AD5 (NC function)
  • Auto. demagnetizer for magnetic chuck
  • Parallel dresser
  • Dust suction with coolant system
  • Magnetic coolant separator
  • Power rapid for vertical
  • Electro / Permanent magnetic chuck
  • NC auto. dressing and compensation
