OIG
NC Series
Ø6 ~ Ø70 mm
Internal grinding range
50 mm
Max. workpiece length
130 / 270 mm
Max. table traverse ( X / Z )
The best grinding solution for the thin workpiece - Bearing inner diameter and inner groove grinding purpose.
With the best machine quality which similar to Japan-made but with more competitive price.

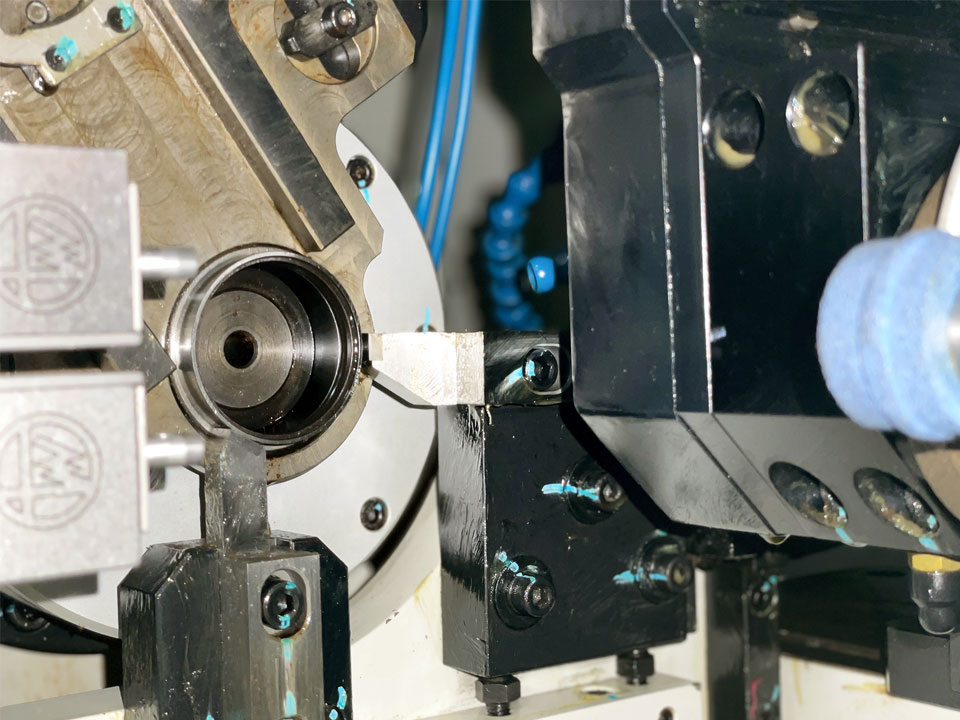

The internal grinder special model for bearing inner diameter & inner groove have the build-in type spincle to minimize the machine body size & floor space. The client could have the benefit of increasing factory space usage.
The bearing industry application to grind its ID and inner groove, plus its joint operation of workhead and loading & unloading system which makes cycle time shorter. An alternative automation system is adding the auto loading system such as vibration feeder.
High-speed grinding efficiency
The high-frequency grinding wheel spindle offers high-speed and stable running. The fixed side base of workhead allows the loading system to adjust easily. The X & Z axes use linear servo motors for the high-speed grinding purpose and shorten the cycle time. With the standard roller dressing device, it could serve better dressing accuracies. Also the optional CBN wheel for better grinding reault.
High accuracies
Machine equips with digital reaout on both axes which makes the super high accuracies is possible especially for the small & thin inner hole parts which ususally difficult to grind. Further, machine has electric workhead with large rotation and centerless supporter which helps the thin workpiece easily to chuck without defroming.
User-friendly
Palmary developed the PLC user-friendly control panel for easily operate in kinds of CNC controller. The client could choose the optional digital readout or in-process ID gauge for high accuracies grinding requirement.
| Model | OIG-200S |
|---|---|
| Capacity | |
| Max. workpiece chuck dia. | Max. Ø80 mm |
| Grinding capacity | Min. Ø6 mm ~ Max. Ø70 mm |
| Max. grinding length | Max. 50 mm |
| Built-in G.W. spindle | |
| Grinding speed | Max. 30000 r.p.m. |
| G.W. dia. | Ø20~Ø45 mm |
| Grinding capacity | Ø22~Ø70 mm |
| G.W. max. linear velocity | 33 M/s |
| Spindle dia. | Ø120 mm |
| Built-in G.W. spindle (opt.) | |
| Grinding speed | Max. 80000 r.p.m. |
| Grinding G.W. dia. | Ø5~Ø15 mm |
| Grinding capacity | Ø6~Ø22 mm |
| Linear velocity | 33 M/s |
| Spindle dia. | Ø100 mm |
| X axis for G.W. | |
| Max. table traverse | 130 mm |
| Max. table feed speed | 12 M/min |
| Min. setting unit | 0.001 mm (opt. 0.0001) |
| Z axis for G.W. | |
| Max. table traverse | 270 mm |
| Max. table feed speed | 12 M/min |
| Min. setting unit | 0.001 mm (opt. 0.0001) |
| Magnetic workhead | |
| Speed | 100～1000 r.p.m. (Max. 1500) |
| Swivel | +1° ～ -15° |
| Motor | |
| 30,000 built-in G.W. spindle | 3.0 kW |
| 80,000 built-in G.W. spindle (opt.) | 2.67 kW |
| X axis for G.W. (servo motor) | 0.75 kW (1.0 hp) Tc : 2.4 Nm |
| Z axis for G.W. (servo motor) | 1.5 kW (2.0 hp) Tc : 7.2 Nm |
| Workhead (servo motor) | 1.5 kW (2.0 hp) Tc : 7.2 Nm |
| Hydraulic pump | 1.5 kW 4P (2.0 hp)(flow 30 L/min) |
| Lubrication system | 0.024 |
| Tank | |
| Coolant tank | 120 L |
| Hydraulic tank | 60 L |
| Lubrication | 0.7 L |
| Built-in spindle cooling | 15 L |
| Machine weight | |
| Net weight | 4500 kgs |
The mentioned specifications & dimensions are subject to change without notice.
ACCESSORIES
- Mitsubishi PLC conversational type controller x 1
- Fully enclosed splash guard x 1
- Built-in grinding wheel spindle 30000 r.p.m. x 1
- Electrical work spindle (1000 r.p.m.) x 1
- Dressing roller build-in spindle (10000 r.p.m.) x 1
- Diamond roller dressing device (excluding diamond roller) x 1
- Linear scale (X axis) x 1
- Electrical box x 1
- Hydraulic tank with pump x 1
- Coolant tank with pump x 1
- Spindle oil cooler x 1
- Lubrication system x 1
- Work lamp x 1
- Tools (Leveling pad) and tool box x 1
ACCESSORIES
- Slot type loading and unloading device (for single size workpiece)
- Demagnetizer for unloading workpiece
- Magnetic ring workpiece fixture (for single size workpiece)
- Diamond roller (for roller dressing device)
- Auto. In-process gauge (mounted on workhead device)
- Magnetic coolant separator
- Paper filter
- Oil mist collector
