ocd-3240p

Cylindrical Grinder

OCD-3220P / 3240P / 3280P / 32130P

OCD-P

CNC Series

200 / 400 mm 800 / 1300 mm

Distance between centers

Ø320 mm

Swivel over table

Ø300 mm

Max. external grinding dia.

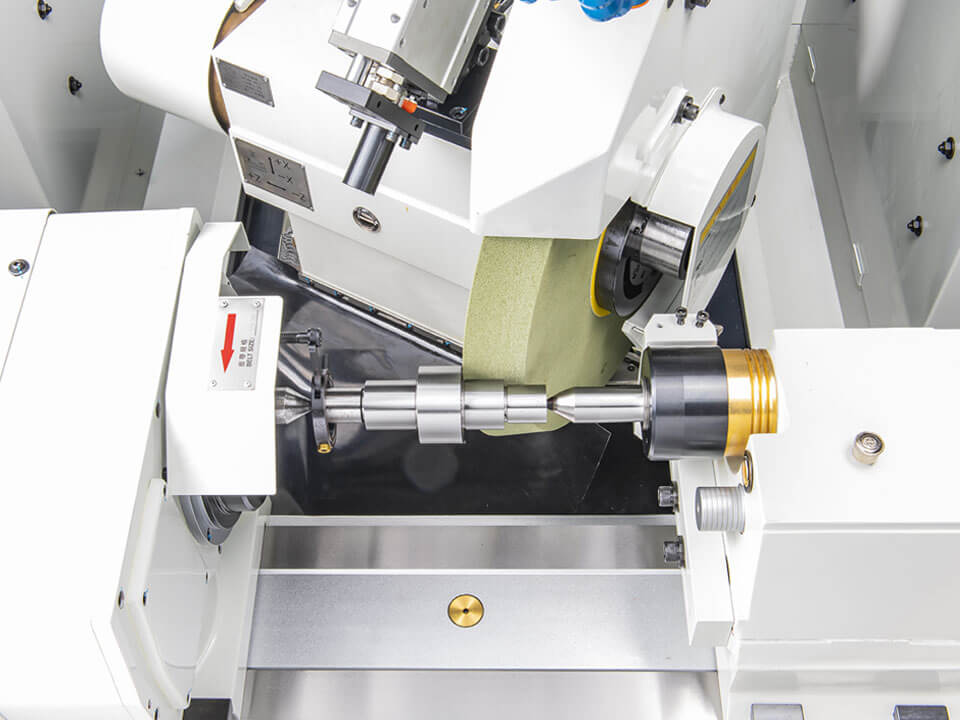

INTRODUCTION

CNC cylindrical grinder is designed with high efficiency, high accuracy and maximum operational convenience in mind. The machine structure design fully meets ergonomic theorem for user-friendly operations. Rigid and stable construction, as well as a special wheel spindle design are combined with advanced CNC control to make cylindrical grinding easier and more accurate than ever before.


FEATURES
work-spindle-headjpg

Rigid work spindle head

The rigid constructed spindle head employs high precision bearings assuring maximum spindle stability. It guarantess outstanding accuracy for external and internal diameter grinding (opt.) and face grinding.

wheel-spindlejpg

Precision wheel spindle

The grinding wheel spindle is precisely machined form high quality alloy steel, normalized, tempered, carburized and sub-zero treated, precisely ground and mirror-effect treated. Non-deformation, maximum wear resistance and lifetime accuracy are assured.

wheel-spindle-bearingjpg

Wheel spindle hydro-static bearing

The hybrid hydro-static bearings are used for the wheel spindle. Metal-to-metal contact will never occur with these highly rigid bearings design and also avoid vibration.

adj-tailstockjpg

Tailstock lubrication system

An automatic oil bath lubrication system has been provided for the tailstock to maintain high-level accuracy. An oil level gauge enables quick oil status checking.

VIDEO

Cylindrical Grinder OCD-3240P

video-bg-07
SPECIFICATIONS
Model OCD-3220P OCD-3240P OCD-3280P OCD-32130P
Capacity
Swivel over table Ø320 mm
Distance between centers 200 mm 400 mm 800 mm  1300 mm
Max. external grinding diameter Ø300 mm
Max. load of centers 150 kgs
Grinding wheel
O.D. x width x I.D. Ø455~510 x 50~80 x Ø127 mm
Linear velocity 45 M/s
Grinding wheel - X axis
Auto. rapid advance 10 m/min
Max. stroke 260 mm
Min. setting unit 0.001 (0.0001) mm
Table - Z axis
Auto. rapid advance 10 m/min
Max. stroke 818 mm 818 mm 1308 mm 1800 mm
Min. input increment 0.001 (0.0001) mm
Swivel angle 0° ~ 12°  0° ~ 10°  -3° , +8°  -3° , +8°
Work spindle head
Swivel angle -30° ~ +90°
Center taper M.T. No. 4
Spindle speed (variable) 10~300 r.p.m.
Max. load of spindle (tool holder included) 35 kgs (max. length: 150 mm)
Tailstock
Center taper M.T. No. 4
Stroke 25 mm
Fine adjustment range ±0.03 mm
Motor
Wheel spindle 5.5 kW (6P)
Workhead spindle (AC Servo Motor) 1.0 kW (4P) Frequency 1.0 kW (4P) Frequency 1.5 kW (4P) Frequency 1.5 kW (4P) Frequency
Wheelhead feed (AC Servo Motor) 1.2 kW
Table feed (AC Servo Motor) 1.8 kW
Hydro-static hydraulic pump 0.37 kW (4P)
Wheel spindle lubrication pump 0.37 kW (4P)
Coolant pump 0.18 kW (2P)
Ballscrew lubrication Auto lubricator (LUBE)
Power
Total voltage 18 KVA
Tank
Wheel spindle lubrication tank 31 L
Lubrication tank 31 L
Hydraulic tank 31 L
Ballscrew lubrication tank 0.7 L
Coolant tank 120 L
Machine weight
New weight 3400 kgs 4250 kgs 4300 kgs 4300 kgs

The mentioned specifications & dimensions are subject to change without notice.

MORE LESS
STANDARD
ACCESSORIES
  • FANUC CNC controller x 1
  • Fully enclosed splash guard x 1
  • Grinding wheel and flange x 1
  • Diamond tool holder (tailstock mounted type) x 1
  • Micro adjustment tailstock x 1
  • Linear scale (for X axis) x 1
  • Carbide tipped work centers (2 pcs/set) x 1
  • Electric system x 1
  • Hydraulic tank with pump x 1
  • Coolant tank with pump x 1
  • Work lamp x 1
  • Tools (Leveling pad) and tool box x 1
OPTIONAL
ACCESSORIES
  • Spare grinding wheel and grinding wheel flange
  • Hydraulic tailstock
  • Cam locked driving dogs (6 pcs/set)
  • Work holder (2 pcs/set)
  • 2-point steady rest
  • Adjustable 3-point steady rest
  • Adjustable 3-jaw scroll chuck
  • Adjustable 4-jaw chuck
  • Wheel balancing stand and arbor
  • Auto. grinding wheel balancer
  • Touch probe gauge
  • Auto. matic in-process gauge
  • Magnetic coolant separator
  • Magnetic and paper filter
  • Oil mist collector
