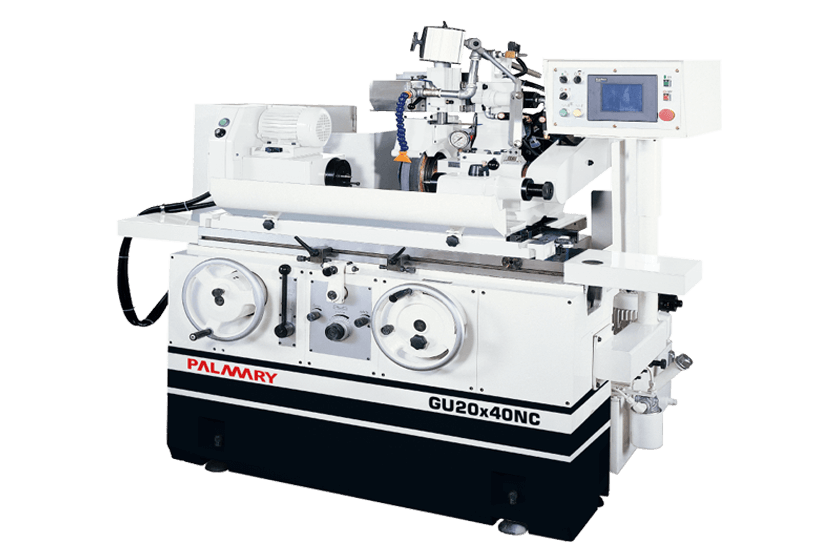

Cylindrical Grinder

GU32x60NC / 100NC / 150NC / 200NC


NC Series

600 / 1000 mm 1500 / 2000 mm

Distance between centers

Ø320 mm

Swivel over table

Ø300 mm

Max. external grinding dia.


PALMARY high precision cylindrical grinders are unmatched in structural rigidity and stability, grinding accuracy and operational convenience. Each machine provides maximum operational flexibility thereby allowing for various grinding operations. You will get extra value when putting a PALMARY cylindrical grinder on your production line.


Stable and rigid spindle head

The spindle runs on precision bearings, assuring maximum spindle stability. It guarantees outstanding grinding accuracy for external dia., internal dia. (optional) & end face.


Special hydrostatic bearing

The wheel spindle runs by using a special hydrostatic bearing and is especially ideal for precision grinding work. It features high speed, no friction between metals, no heat generation, deformation-free, extra high accuracy and continual use.

Precision wheel head

Precision wheel head

The grinding wheel spindle is precision machined from high quality alloy steel, normalized, tempered, carburized and sub-zero treated, precision ground and mirror-effect treated.


Various grinding application

One grinder allows straight plunge grinding, shoulder grinding, traverse grinding, end face grinding, taper grinding & internal grinding (optional) functions for different machining purpose.



Model GU32x60NC GU32x100NC GU32x150NC GU32x200NC
Swivel over table Ø320 mm
Distance between centers 600 mm 1000 mm 1500 mm 2000 mm
Max. external grinding diameter Ø300 mm
Max. load of centers 150 kgs
Grinding wheel
O.D. x width x I.D. Ø405 x 50 x Ø127 mm
Linear velocity 45 M/s
Grinding wheel - X axis
Manual distance 160 mm
Auto. rapid advance 40 m/min
Max. stroke 250 mm
Min. setting unit 0.001 mm
One turn of handwheel (graduation) 2 (0.005) mm
Table - Z axis
Traverse speed 1.5 m/min
Max. stroke 650 mm 1110 mm 1560 mm 2300 mm
Auto. reciprocate min. stroke 8 mm
Feed of one turn of handwheel (2-step) 20 mm (2 mm)
Swivel angle -2°, + 10° -3°, +8° -3, +7° -1°, +7°
Work spindle head
Swivel angle -30° ~ +90°
Center taper M.T. No. 4
Spindle speed (variable) 10~300 r.p.m.
Max. load of spindle (tool holder included) 35 kgs (max. length : 150 mm)
Center taper M.T. No. 4
Stroke 25 mm
Fine adjustment range ±0.03 mm
Wheel spindle 3.7 kW (4P)
Workhead spindle (AC Servo Motor) 0.85 kW (4P) Frequency 1.3 kW (4P) Frequency 1.3 kW (4P) Frequency 1.3 kW (4P) Frequency
Hydraulic pump 0.37 kW (4P)
Wheel spindle lubrication pump 0.18 kW (4P)
Coolant pump 0.18 kW (2P)
Internal grinding spindle (opt.) 0.75 kW (2P)
Total voltage 10 KVA 11 KVA 11 KVA 11 KVA
Wheel spindle lubricant tank 9 L 9 L 9 L 9 L
Hydraulic tank 46 L
Coolant tank 110 L
Machine weight
New weight 2600 kgs 3200 kgs 4100 kgs 6000 kgs

The mentioned specifications & dimensions are subject to change without notice.

  • Grinding wheel and flange x 1
  • Grinding wheel inverter x 1
  • Diamond tool holder (table mounted type) x 1
  • Carbide tipped work centers (2 pcs/set) x 1
  • Electric system x 1
  • Hydraulic tank with pump x 1
  • Coolant tank with pump x 1
  • Work lamp x 1
  • Tools (Leveling pad) and tool box x 1
  • Internal grinding attachment (included one spindle)
  • Diamond tool holder for internal and external grinding wheel dressing (upward open type)
  • Diamond tool holder (tailstock mounted type)
  • Diamond tool holder for internal and external grinding wheel dressing (sideward open type)
  • Angle trimming device
  • Radius trimming device
  • Cam locked driving dogs (6 pcs/set)
  • Work steady rest (2 pcs/set)
  • 2-point steady rest
  • 3-point steady rest
  • Adjustable 3-jaw scroll chuck
  • Adjustable 4-jaw scroll chuck
  • Magnetic coolant separator
  • Magnetic coolant separator with paper filter
  • Wheel forming device (Manual type, without auto. compensation)
  • Wheel forming device (For NC model, with auto. compensation)
  • Wheel balancing stand and arbor
